Application
characteristics:

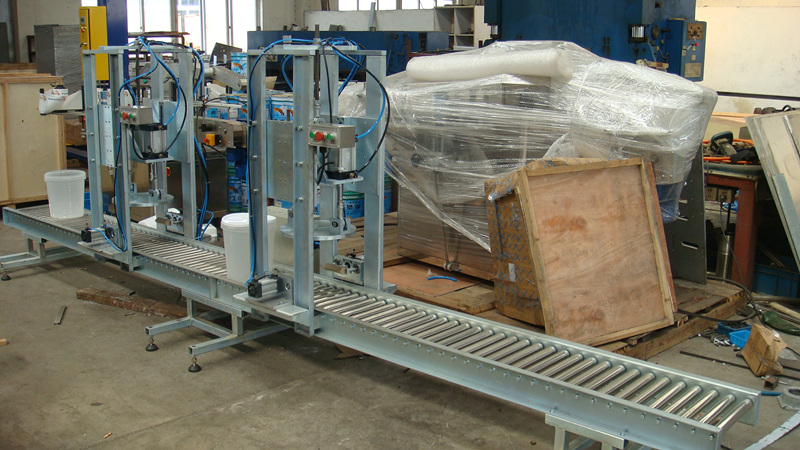

XGJ-1 type automatic
capping machine is a new capping machine by Shanghai Jiacheng company recently
improved. The utility model has the advantages of beautiful appearance,
handiness, high passing rate and so on. can
be used in food, pharmaceutical, cosmetics, pesticides, cosmetics and other
industries.
Product Description
Filled container
transfer by conveyor to the lock capping position, block blocking container, fixing
the container on lock sealing position, automatic sorting caps and transfer cap
on container mouth, lock capping head automatic go down, aim at container
mouth, and press cap on container mouth, lock capping head lift up, block
release , container transfer out for next work procedure.
Technical parameters technical parameter
1 , working voltage: 220V/50HZ - 60HZ
2, rated
power: 1000W
3,
production capacity: 15-30 bottles / minute (according to actual calculation)
4,
bottle size: Standard
5, tank
diameter: 140 mm Phi Phi 25-
6, tank
height: 38-400 mm
7,
exterior size: 1000*700*1600MM
8, net weight: 250kg
