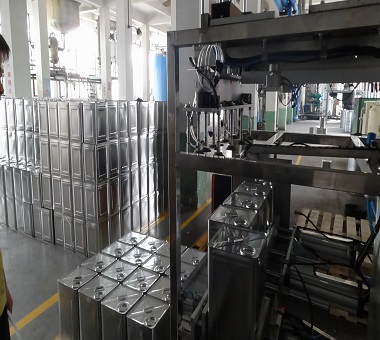

Automatic stacker is mechanical and electrical integration of high-tech products, palletizing machine can meet the production needs of medium and low production. The stacking of various kinds of products, such as coating barrel, material bag, glue block and box , can be carried out according to the required grouping method and number of layers. The optimum design makes the pile compact and neat.
The stacker machine is stacked finished packed container or carton according to a certain arrangement on the pallet, pallet (wood, plastic), automatic stacking, can stack multiple layers, and then conveyor transfer out, easy for forklift move to the warehouse storage. This equipment adopts PLC+ touch screen control to realize intelligent operation management, which is simple and easy to master. It can greatly reduce labor force and reduce labor intensity. Stacking machine stack different kind products according to customer process requirements work automatically stacked into a layers, and will be conveying finished stacked products out..
Structure characteristics:
Tstacking machines are mainly parts are conveyor, slow stop conveyor, transposition conveyor, pallet warehouse, pallet conveyor, marshalling machine, pushing device, stacking device and stacker conveyor. The structural design is optimized and the action is stable and reliable. The palletizing process is fully automatic, without manual intervention during normal operation, and has a wide range of applications.
Power 380V, 50HZ, 10KW
The pressure 6 kg / m3
Pallet Application L:1600mm W:1600mm in pallet
Height Of Stacking 1600mm
Speed 2-5 minutes to
complete the 6 layer stack
