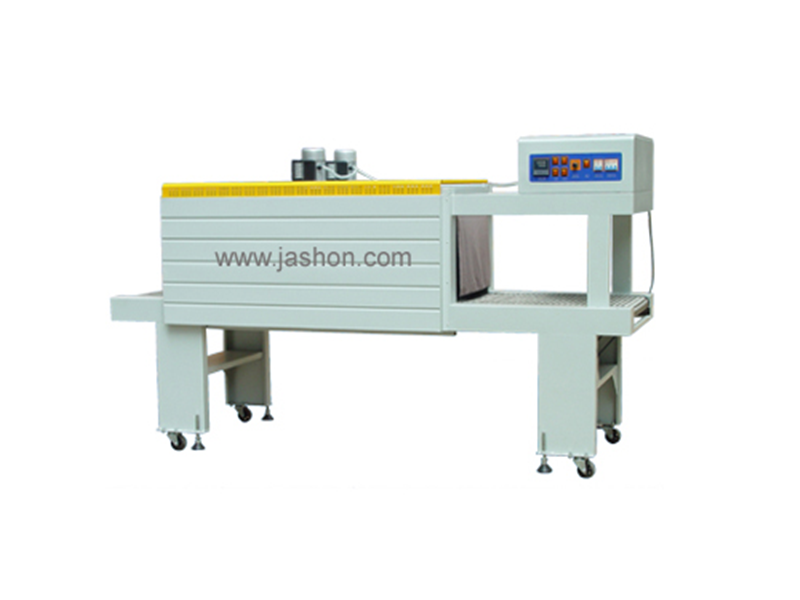

Medium sized PE film heat shrinkable packaging
machine series, on the basis of extended jet thermal shrinkage machine,
increased the capacity of contraction chamber, equipped with more powerful
transmission motor, so as to have higher carrying capacity. A large power
internal circulation fan is adopted to make the contraction chamber have more
uniform and sufficient internal circulation hot air, thereby ensuring the
contraction packing of larger object.
This machine adopts the electronic speed regulation
motor, and the speed regulation range is large. The heat shrinkable chamber
adopts a totally enclosed hot air inner circulation device, the product has the
advantages of good shrink wrapping effect, convenient operation and
maintenance, and can be applied to shrink packaging of any shrink film, and is
especially suitable for shrink wrapping of PE film. (main models: BS5530M-PE,
BS5540M-PE, can be customized according to customer needs of various models)
|
Model |
BS5530M-PE BS5540M-PE |
|
Voltage |
380V 380V |
|
Load |
40Kg 40Kg |
|
Power |
18KW 21KW |
|
Heating furnace size（mm） |
1450×550×300 1450×550×400 |
|
Machine Size（mm） |
2550×850×1400 2550×850×1500 |
|
Conveyor Speed(m/min) |
0～8 0～8 |
|
Weight (kg) |
260 300 |
